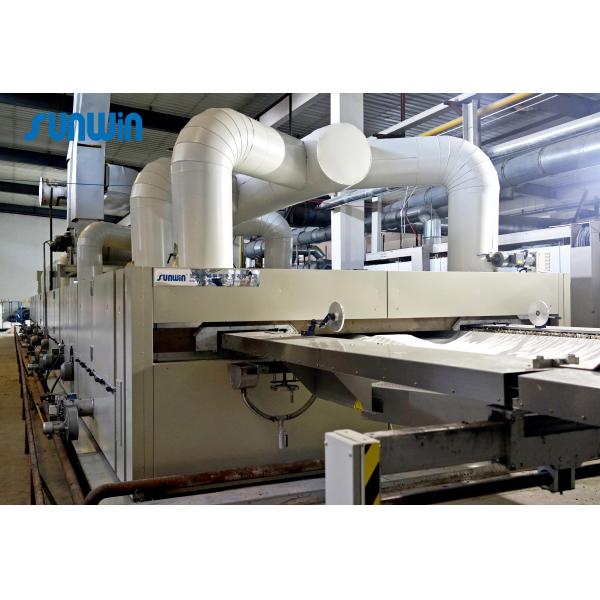

8 Chamber Single Padder Automatic Weft Straightener Machine Stenter Finishing Process

Product Categories
Xinwen Machinery Manufacturing (Wuxi) Co.,Ltd.
Contact Now

8 Chamber Single Padder Automatic Weft Straightener Machine Stenter Finishing Process

  • 1
  • 2

Brand Name : SUNWIN

Model Number : STH-2600-8

Certification : CE

Place of Origin : CHINA

MOQ : 1 SET

Price : USD5000-300000

Payment Terms : L/C, T/T

Supply Ability : 8 SET/ MONTH

Delivery Time : 60-90 Days

Packaging Details : Pallet packing / Wooden box packing

Condition : NEW

Automation grade : Fully Automatic

Product name : stenter finishing machine

Voltage : 380V/50HZ

Power : 185KW

Warranty : 1 Year

Service : Overseas service available

Color : White

Contact Now

Single padder automatic weft straightener stenter finishing machine

Main Features:

- Motorized width adjustment system

- All width adjustment spindles regulated automatically

- Width adjustment system with individual drives

- Number of chamber: 4-12 chambers

- Individual configuration for woven fabrics

- Individual configuration for knitted fabrics

- Max. working temperature: 230℃

Specification:

Model STH-2600-8
Machine width 2600mm
Working width 2400mm
Speed 5-100m/min
Heating system Thermal Oil/ Steam/ Gas
Chambers 8 chambers
Chain Horizontal Chain
Rail Lubricant type rail
Selvedge gumming Option
Selvedge cutting Option
Automatic weft straightener OPtion

Application:

Major suitable for open width knitted fabric, woven fabric, warp knitted fleece fabric etc

Machine Flow Process:

Vertical type entry → Centering device → Padder →Automatic weft straightener → Operation Platform → Touch Screen Controller (15'') → Pinning + Overfeeding → Chain → Gumming → Chambers → Air cooling →Cutting device → Cylinder cooling → Plaiter

8 Chamber Single Padder Automatic Weft Straightener Machine Stenter Finishing Process

Warranty:

1 YEAR WARRANTY PERIOD.

Company Information:

Wuxi Xinwen Machinery Manufacturing Co., Ltd is a high tech enterprise, specialist in stenter machine design, manufacturing and sales. Since 2000, we start and insist on giving a professional textile machinery solution for our customer, upgrade the product quality and create values for our customer

8 Chamber Single Padder Automatic Weft Straightener Machine Stenter Finishing Process
